Sphinx documentation
Our testbed documentation is written with Sphinx. Sphinx uses a markdown syntax that is pretty easy to use, and can easily incorporate images and code blocks, plus manage document hierarchy for complex or diverse manuals, such as this one.
Getting started
To get started, we first need to have Python, pip and venv installed.
On Ubuntu:
sudo apt install python3 python3-pip python3-venv
Then, we need to install sphinx main package and the theme that we use. But we are going to do it in a virtual environment, to clearly separate dependencies, which is a good practice.
We have the necessary steps in the setup.sh script, which
contains the following:
#!/usr/bin/env bash
python3 -m venv testbed
source ./testbed/bin/activate
python3 -m pip install sphinx sphinx-rtd-theme
The first line is the shebang, which lets bash identify what program it should use to parse the current file.
The second line creates the virtual environment called testbed.
The third line activates the virtual environment, where
calling python3 will now invoke a separate version contained
in the testbed directory.
The fourth, and last, line installs sphinx and our chosen theme.
Now we can proceed to build the documentation with the
build_docs.sh script, which contains the following:
#!/usr/bin/env bash
source ./testbed/bin/activate
cd ./docs && make html
Again, the first line is a shebang to indicate how to process the file.
The second line activates the virtual environment.
The third, and last, line walks into the docs subdirectory and builds
the html version of the documentation.
After running it, you should see no warnings.
$ ./build_docs.sh
Running Sphinx v7.2.6
loading pickled environment... done
building [mo]: targets for 0 po files that are out of date
writing output...
building [html]: targets for 1 source files that are out of date
updating environment: 0 added, 1 changed, 0 removed
reading sources... [100%] index
looking for now-outdated files... none found
pickling environment... done
checking consistency... done
preparing documents... done
copying assets... copying static files... done
copying extra files... done
done
writing output... [100%] index
generating indices... genindex done
writing additional pages... search done
dumping search index in English (code: en)... done
dumping object inventory... done
build succeeded.
The HTML pages are in build/html.
Now we can inspect our freshly built documentation in docs/build/html/index.html.
Documentation structuring
We already have a few sections, so let’s explore them.
$ tree ./docs/source/
./docs/source/
├── conf.py
├── container-tools
│ ├── docker-compose.rst
│ ├── docker.rst
│ ├── helm.rst
│ ├── img
│ │ ├── bitnami-nginx.png
│ │ ├── bitnami-nginx-templates.png
│ │ ├── bitnami-nginx-templates-ports.png
│ │ ├── nginx-container-htop.png
│ │ ├── ubuntu-docker-hub-page.png
│ │ └── wordpress-wizard.png
│ └── kubernetes.rst
├── container-tools.rst
├── index.rst
├── meta
│ └── sphinx-documentation.rst
├── meta.rst
├── ml-components
│ └── mlflow.rst
├── ml-components.rst
├── oran-components
│ ├── oran-sc.rst
│ └── srs-ran.rst
├── oran-components.rst
├── setup-tools
│ ├── ansible.rst
│ ├── arm-builds.rst
│ └── multipass.rst
├── setup-tools.rst
├── _static
├── sysadmin
│ ├── img
│ │ └── testbed_stack.png
│ ├── testbed.rst
│ └── user-management.rst
├── sysadmin.rst
└── _templates
10 directories, 28 files
Looking at the top-level directory, we can see the main document (index.rst),
which unites all document sections (.rst files).
.. UnB O-RAN Testbed documentation master file, created by
sphinx-quickstart on Mon Nov 27 17:06:02 2023.
You can adapt this file completely to your liking, but it should at least
contain the root `toctree` directive.
Welcome to UnB O-RAN Testbed's documentation!
===========================================================
.. toctree::
:maxdepth: 3
:caption: Contents:
container-tools
oran-components
ml-components
setup-tools
meta
sysadmin
Indices and tables
==================
* :ref:`genindex`
* :ref:`modindex`
* :ref:`search`
The important part of this file is the toctree declaration,
which basically works like a C/C++ includes, which effectively merges
the listed files (file extensions can be omitted) to the current one.
For the meta documentation, we have the respective meta.rst
file with the following contents:
Meta
====
.. toctree::
:maxdepth: 2
:caption: Contents:
meta/sphinx-documentation.rst
As we can see, we have the section title Meta, which has its font size
adjusted by the ==== signs just below it.
So far, the Meta chapter has only this documentation regarding Sphinx,
contained in the meta/sphinx-documentation.rst file.
The sphinx-documentation.rst file has the actual documentation
regarding Sphinx.
Sphinx documentation
====================
.. _Sphinx: https://www.sphinx-doc.org/en/master/
Our testbed documentation is written with `Sphinx`_.
Sphinx uses a markdown syntax that is pretty easy to use,
and can easily incorporate images and code blocks, plus
manage document hierarchy for complex or diverse manuals,
such as this one.
Getting started
---------------
To get started, we first need to have Python, pip and venv installed.

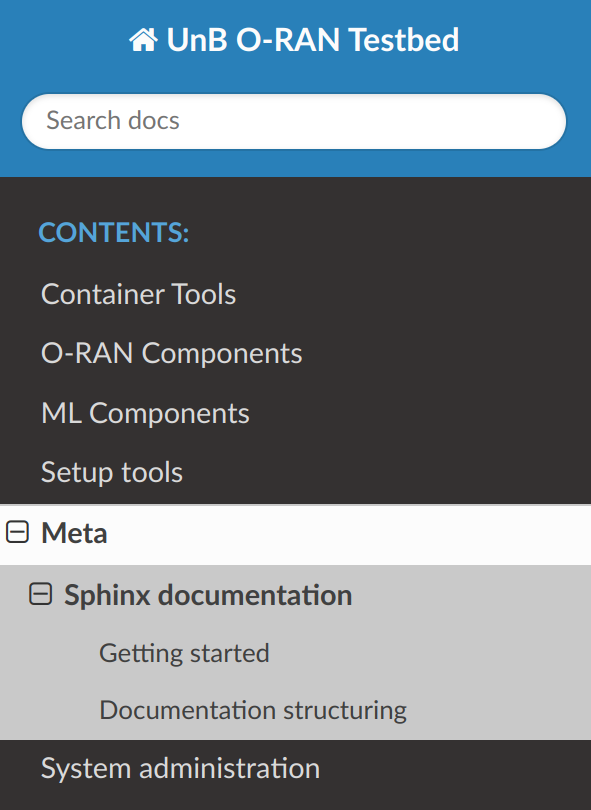

This produces the following document tree in the left-sidebar nagivation menu.
Header hierarchy
To organize contents, it is natural to use different font sizes.
Let’s test an example with the following chapter, section and subsection.
Chapter
=======
Section
-------
Subsection
**********
Not to screw up with the actual document, using just an image with the outputs.
External links
External links are pretty easy to handle, you first declare the link then use it in the text as follows.
.. _lalalalala: https://youtu.be/Xfg0QuhYVjE
Here is the `lalalalala`_ video.
Which produces:
Here is the lalalalala video.
Cross-references
To reference another section of this documentation, use the name of the chapter, section or subsection in the following way:
:ref:`Multipass`
:ref:`Cross-references`
Which produces:
Including images
If your chapter does not have its own img image subdirectory, create it.
Then place the image there, and reference it in that chapter.
For example, the toctree image is included as follows:
.. image:: img/toctree.png
:width: 30%
Which produces
Including source code
If you want to include source code, create a .. sourcecode:: LANGUAGE block,
with the LANGUAGE you want to use, which will allow for proper syntax colouring.
Common languages include Python, Cpp, Bash, Console, reST (markdown flavour used by Sphinx).
.. sourcecode:: Cpp
int main()
{
return 0;
}
.. sourcecode:: Python
import time
print(time.time())
.. sourcecode:: Bash
#!/usr/bin/env bash
source ./testbed/bin/activate
cd ./docs && make html
.. sourcecode:: Console
$ whoami
gabriel
.. sourcecode:: reST
Subinception
************
Which produces the following:
int main()
{
return 0;
}
import time
print(time.time())
#!/usr/bin/env bash
source ./testbed/bin/activate
cd ./docs && make html
$ whoami
gabriel
Subinception
************
